PRODUCT INTRODUCTION
PRODUCT SPECIFICATION
PRODUCT NAMETROLLEY SPEAKER AMPLIFIER BOARD
MODEL NO.YD-280AB.PCB+YD-PA10TY.PCB -HORIZONTAL
OPERATING VOLTAGEAC 220-240V
EXTERNAL DC INPUTDC 12V
POWER OUTPUT200W * 1CH
IMPEDANCE4 OHMS
SNR≥85dB
DISTORTION≤0.5%
FUNCTIONSUSB/MICRO SD/BT/AUX /FM/RECORD/REMOTE/DISPLAY
FEATURESMIC PRIORITY/VOLUME/ BASS/TREBLE/MIC BASS/MIC TREBLE/MIC ECHO/MIC DELAY/REVERB/GUITAR VOLUME/VOCAL FADER
FILE SYSTEMFAT32
SUPPORT FORMATMP2/MP3/ WMA/ APE/FLAC/AAC/ MP4/ M4A/ WAV（IMAADPCM & PCM/AIF/AIFC
FIMRWARE UPGRADEYES
SOLUTIONMV SILICON BP1048+ CHINA MADE TRANSISTOR 5198/1941
SIZEL380*W190MM

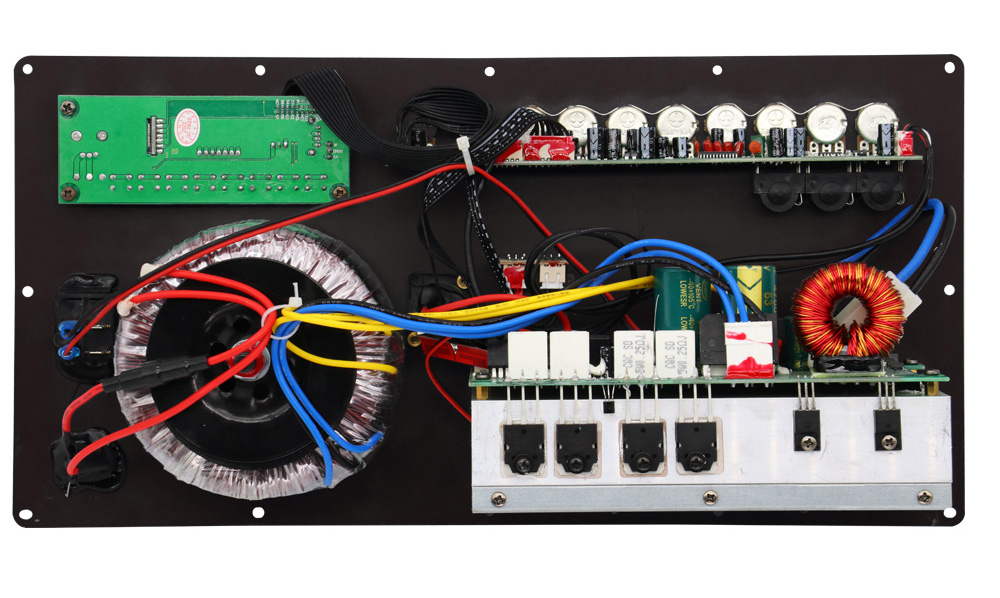

PRODUCT DETAILS
IT SOUNDS GREAT ！
